Shenzhen Jingcheng Dingyi Forming Technology Co., Ltd. is one of the leading manufacturers and suppliers of injection molded gears in China, specialized in providing high quality customized products. If you're going to buy bulk cheap injection molded gears, welcome to get quotation from our factory. Quality products and low price are available.

Designed for Consistent Gear Performance

A plastic gear is more than a simple molded wheel. Tooth geometry, shaft alignment, bore accuracy, shrinkage, material behavior, and operating conditions can all affect how the gear performs inside an assembly.

For custom gear projects, we consider:

• Gear diameter and tooth count
• Module / diametral pitch
• Pressure angle
• Tooth profile
• Bore and shaft interface
• Hub and flange geometry
• Required backlash
• Wall thickness and molding shrinkage
• Operating temperature and load
• Wear and lubrication conditions

This information helps determine the appropriate material, gear design, tooling approach, and production process.

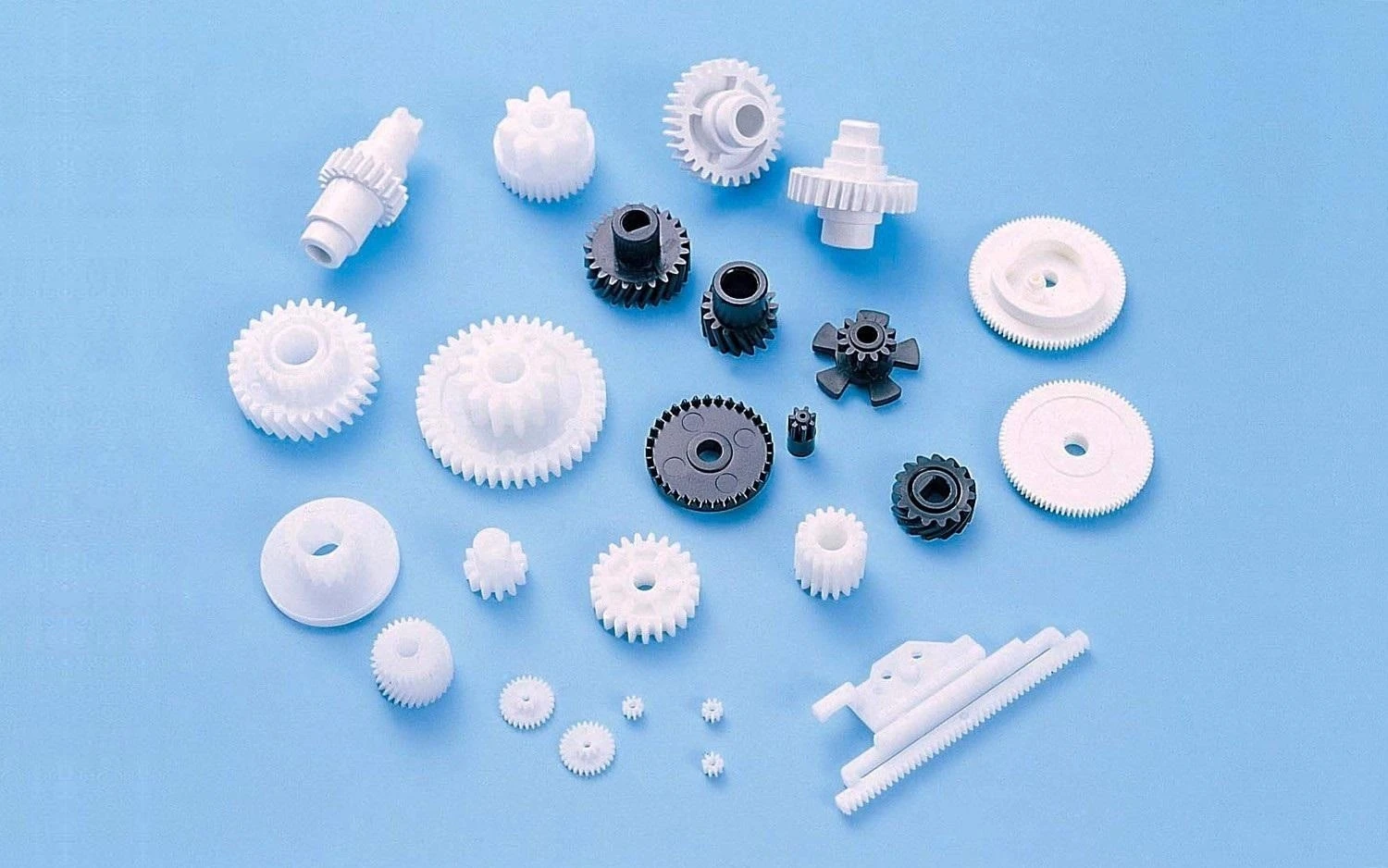

Common Gear Designs We Manufacture

Different mechanisms require different gear configurations. Custom injection molding can be used for a wide range of plastic gear designs, including:

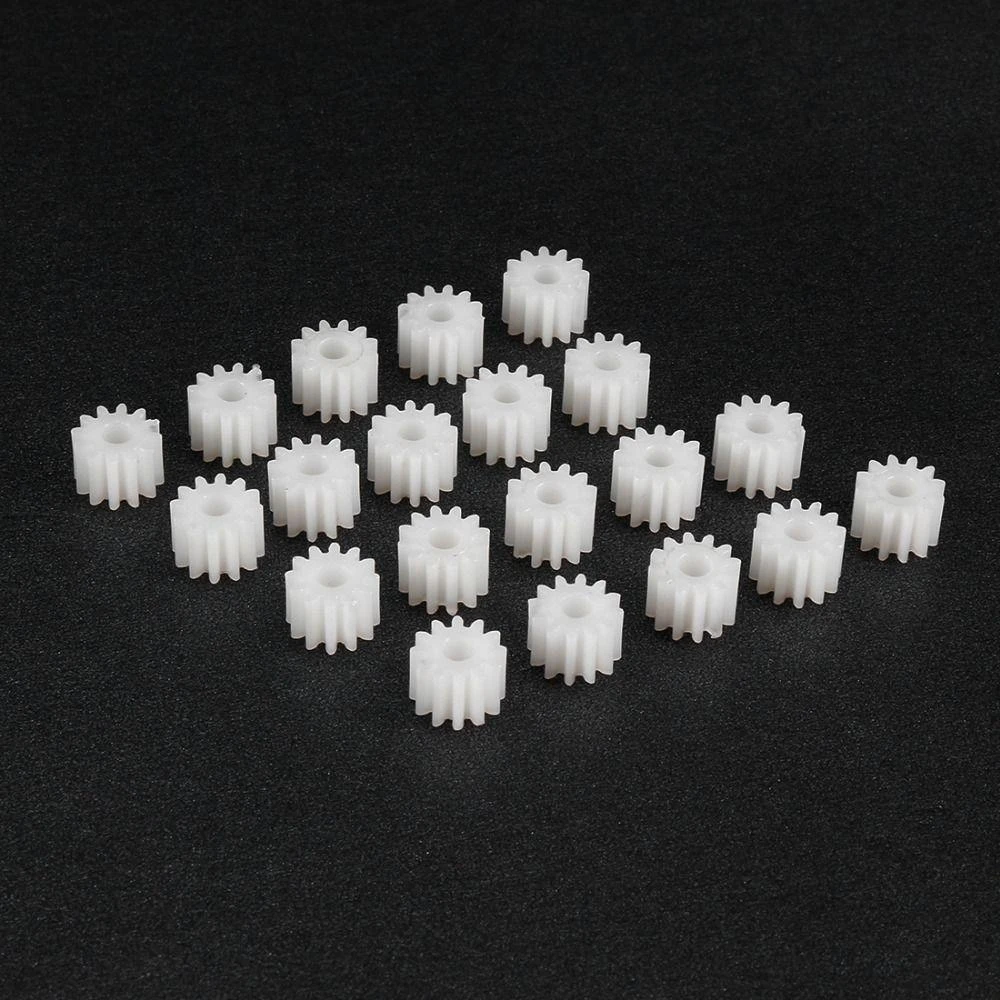

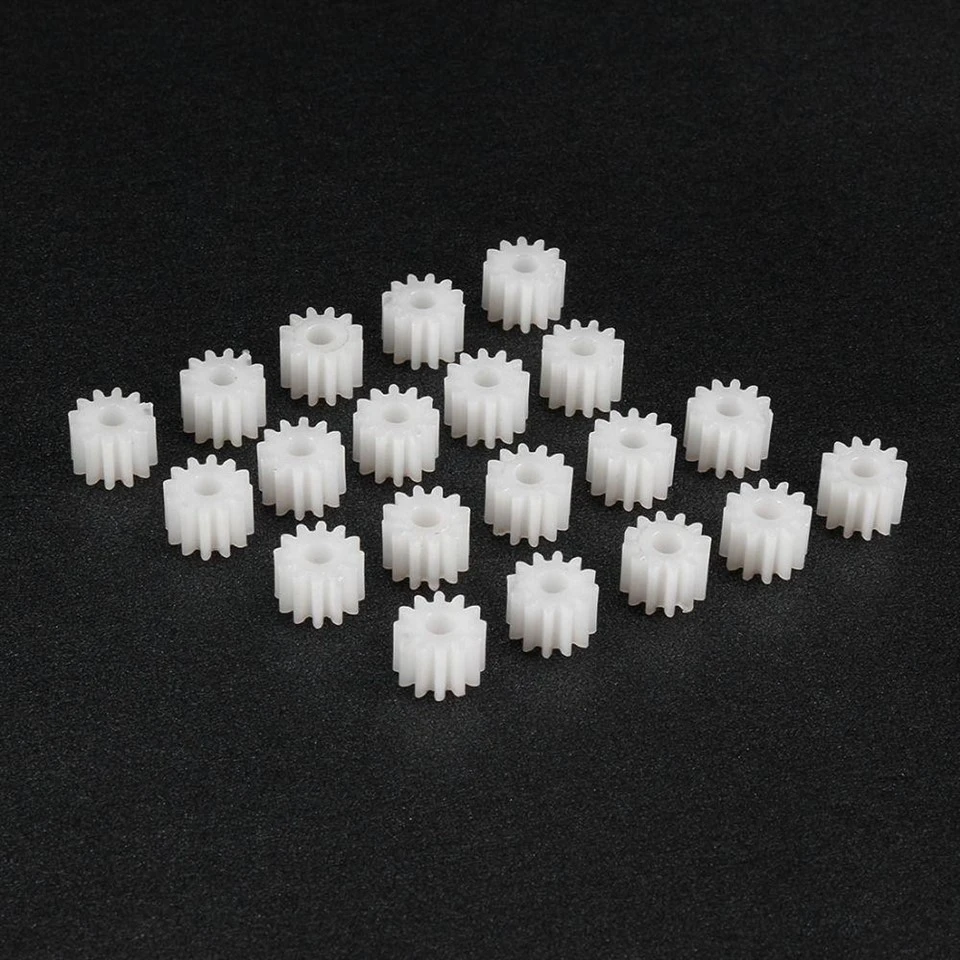

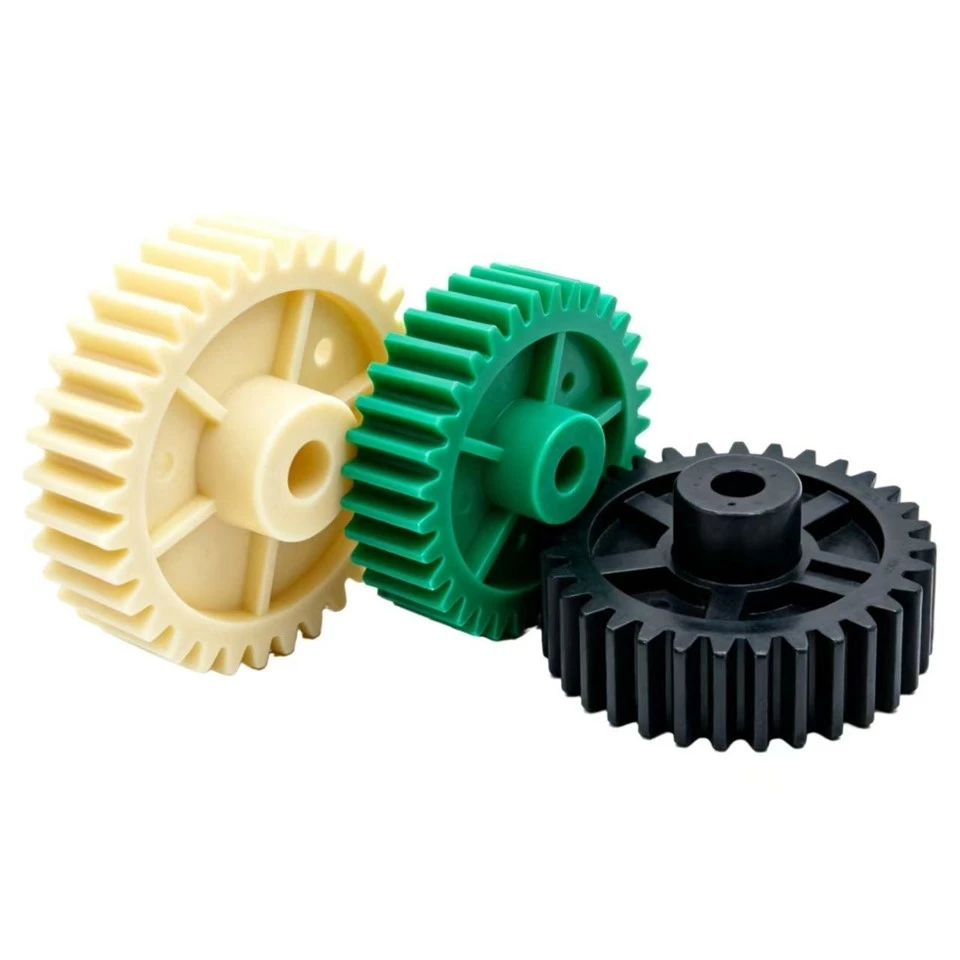

Spur Gears
Simple and widely used for parallel-shaft transmission.

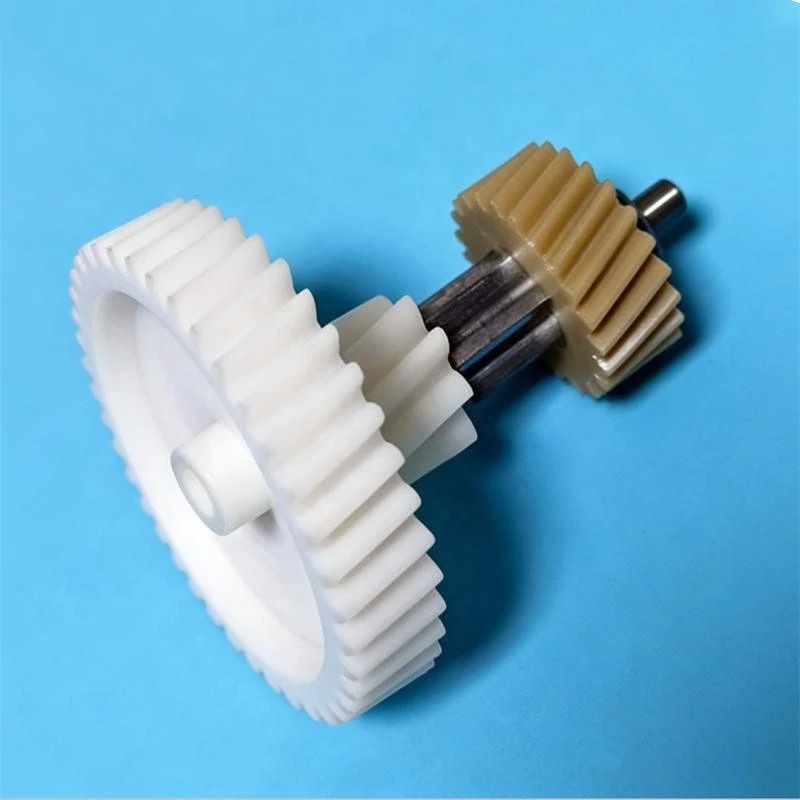

Helical Gears
Suitable when smoother and quieter transmission is required.

Worm Gears
Used in compact mechanisms where speed reduction is required.

Planetary Gear Components
Used in compact transmission systems with multiple interacting gears.

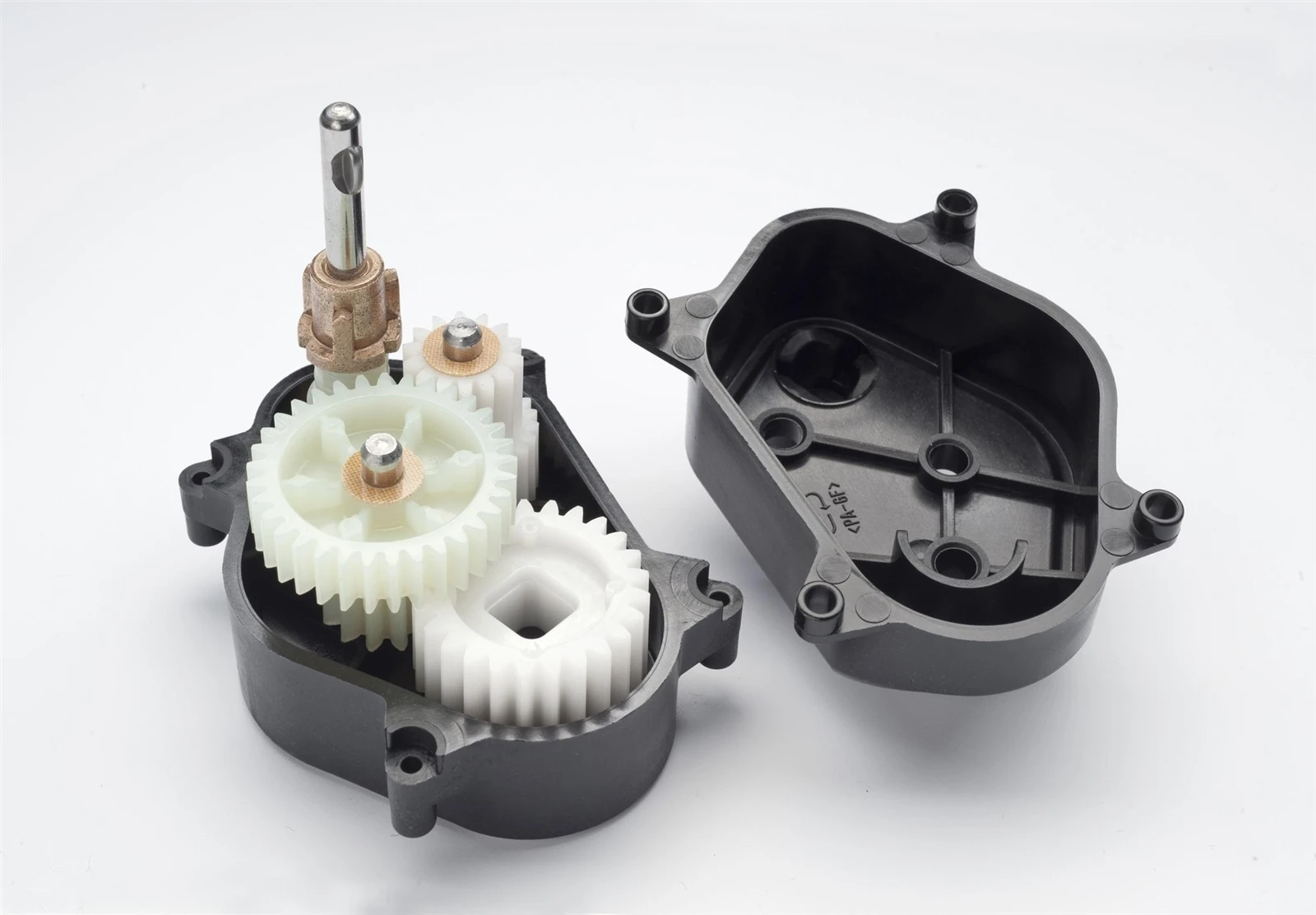

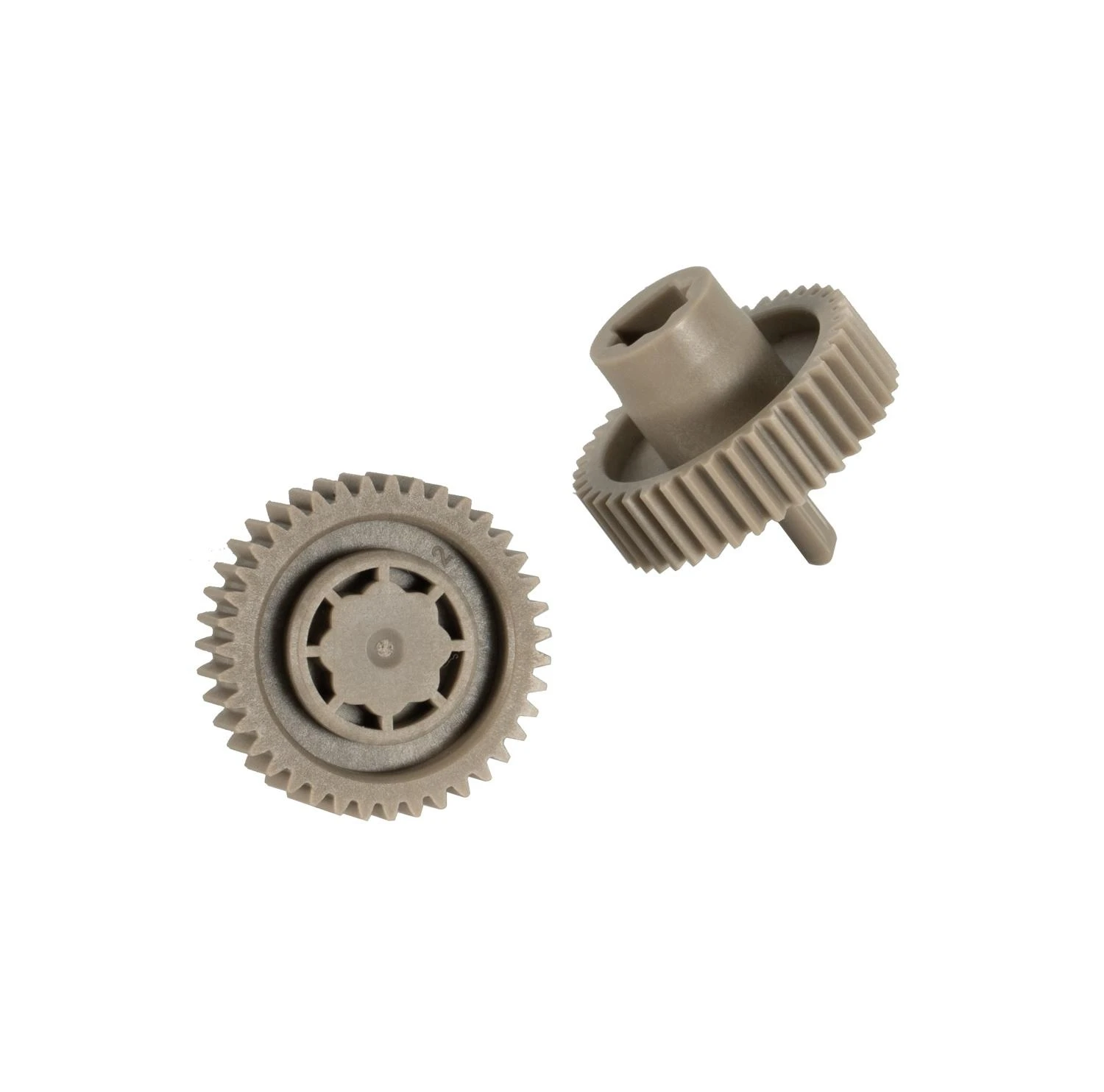

Gear Wheels with Hubs
Designed for direct connection to shafts, pins, or other mechanical components.

Custom Gear Assemblies
Multiple molded components can be designed around a specific transmission mechanism.

Material Selection Matters

Plastic gear performance depends heavily on material selection. The right material should match the actual working environment rather than simply the lowest material cost.

Common considerations include:

Engineering plastics such as POM, PA, PBT, and other application-specific materials may be considered depending on the design and operating conditions.

Injection Molding Advantages for Gear Production

For repeated production, injection molding offers several advantages over machining individual plastic gears.

Repeatability
The mold reproduces the gear geometry consistently from part to part.

Complex Geometry
Tooth profiles, hubs, ribs, and other features can be incorporated into one molded component.

Production Efficiency
Once tooling is established, large quantities can be produced efficiently.

Reduced Secondary Operations
A well-designed molded gear may require little or no additional machining.

Lower Part Cost at Volume
For suitable production quantities, molding can significantly reduce the unit cost compared with machining each gear separately.

What Can Affect Plastic Gear Accuracy?

Gear accuracy is influenced by more than the mold itself.

Material shrinkage, mold temperature, cooling conditions, gate location, warpage, and part geometry can all affect the final dimensions.

For this reason, the gear design should be reviewed before tooling. Critical dimensions such as tooth geometry, bore diameter, concentricity, and mating surfaces should be clearly identified according to the requirements of the final assembly.

From Prototype to Production

For a new mechanism, customers may first need a small number of gears for functional testing before committing to production tooling.

Depending on the quantity and project requirements, we can help evaluate whether the initial parts should be produced by:

CNC machining → Prototype validation → Injection molding → Production

This approach can allow the gear design and assembly to be tested before investing in production tooling.

Where Injection Molded Gears Are Used

Custom plastic gears can be found in many compact mechanical systems:

1. Robotic actuators and mechanisms
2. Automotive adjustment systems
3. Medical equipment
4. Electric motors
5. Small gearboxes
6. Office equipment
7. Consumer electronics
8. Appliances
9. Industrial automation
10. Instrumentation

Their low weight and relatively quiet operation make plastic gears particularly useful in compact electromechanical products.

Send Us Your Gear Design

If you already have a gear drawing or 3D model, send it to our engineering team for review.

Useful information includes:

3D CAD file | 2D drawing | Material requirement | Quantity | Operating conditions | Mating gear information

We can review the design and discuss the appropriate manufacturing method, material, tooling requirements, and production cost.
