Shenzhen Jingcheng Dingyi Forming Technology Co., Ltd. is one of the leading manufacturers and suppliers of aerospace turbine blade in China, specialized in providing high quality customized products. If you're going to buy bulk cheap aerospace turbine blade, welcome to get quotation from our factory. Quality products and low price are available.
Jingcheng provides custom CNC machining for aerospace turbine blades and related propulsion components. We work from customer CAD models and drawings to manufacture prototypes and low-volume precision parts in materials such as titanium, stainless steel, and aluminum.
Where Turbine Blade Machining Becomes Difficult
The main machining challenge is the airfoil surface. Its changing curvature requires the cutter to approach the workpiece from different directions while maintaining stable contact with the surface.
The blade root presents another challenge. It connects the blade to the rotating assembly, so its dimensions and positional relationships may be critical to the final assembly.
Thin edges and transition zones also require careful control. Excessive cutting force can affect the shape of these areas, while aggressive machining can leave unwanted marks on the finished surface.
For this reason, turbine blade production is normally planned around the complete geometry rather than treating each feature as an isolated dimension.
5-Axis CNC for Airfoil Geometry
Five-axis machining is particularly useful when a component contains continuously changing surfaces.
Instead of repeatedly repositioning the workpiece, simultaneous or indexed 5-axis machining allows the cutting tool orientation to change according to the blade geometry. This can reduce the number of setups and help maintain the relationship between the airfoil, root, holes, and other reference features.
For suitable parts, Jingcheng uses 5-axis CNC machining to work on complex curved surfaces and multi-angle features. The actual machining strategy is selected according to the CAD model, material, tolerance requirements, and accessible cutting directions.
Material Makes a Difference
Turbine-related aerospace components may require materials with different combinations of strength, weight, corrosion resistance, and temperature performance.
Titanium alloys can be challenging because of their low thermal conductivity and machining characteristics. Tool condition and cutting parameters need to be controlled to avoid excessive heat and premature tool wear.
Stainless steels offer good strength and corrosion resistance but can also generate considerable cutting heat and work hardening during machining.
Aluminum alloys are easier to machine in many applications and are often selected when low weight is an important consideration.
The material grade supplied by the customer is therefore included in our process review rather than treated as a secondary detail.
From CAD Model to Finished Blade
A typical project begins with the customer's 3D CAD model, drawing, material specification, quantity, and tolerance requirements.
Our engineering team first examines the geometry and identifies areas that may require special workholding, additional machining operations, or closer inspection. The blade is then positioned according to the selected machining strategy.
After roughing, semi-finishing, and finishing operations, critical surfaces and features are checked. Deburring is carried out carefully around edges and transition areas to avoid changing the intended geometry.
For repeat orders, the machining and inspection approach can be maintained as a controlled production process to improve consistency between batches.
Dimensional Accuracy Is Only Part of the Job
For a turbine blade, achieving a dimensional number on a drawing does not automatically mean the part is acceptable.
The relationship between several features can be just as important as an individual measurement. Airfoil profile, hole location, blade-root dimensions, surface condition, and the position of reference features may all need to be considered together.
On suitable CNC features, machining tolerances can typically be controlled around ±0.01 mm, while the achievable tolerance for a specific feature depends on its size, geometry, material, and drawing requirements.
Inspection is performed against the customer's defined requirements, with dimensional and visual checks used to verify the finished component.
Beyond Individual Blades
The same machining approach can be applied to other components used around aerospace propulsion and high-performance mechanical systems.
Jingcheng can manufacture custom:

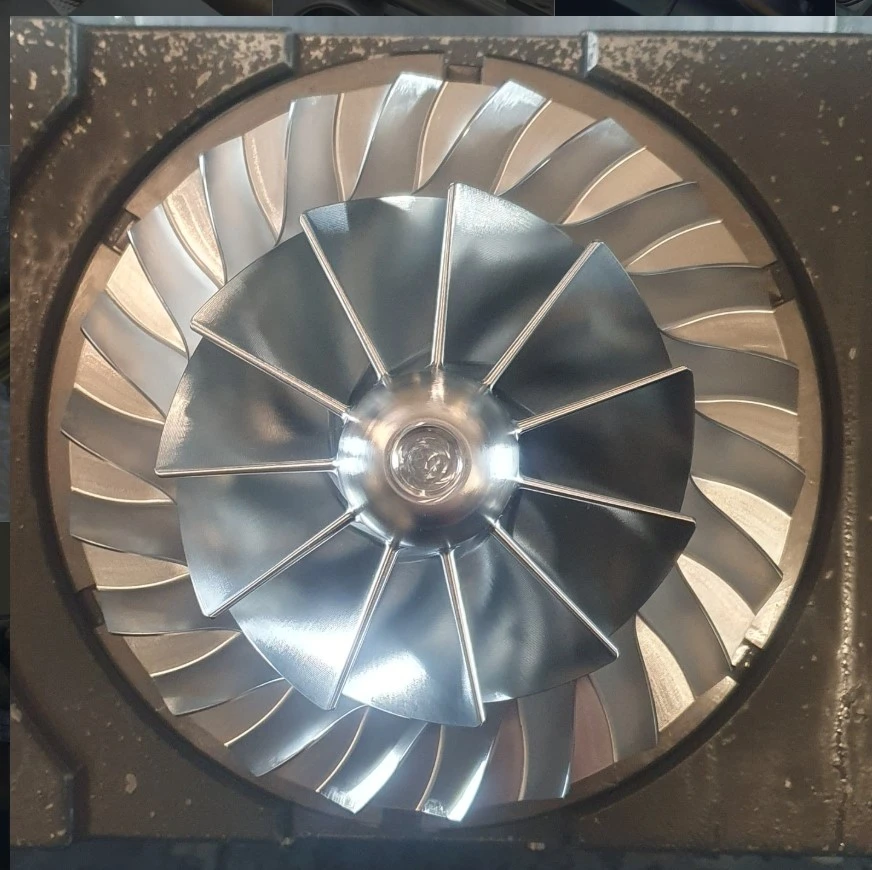

- Turbine blades

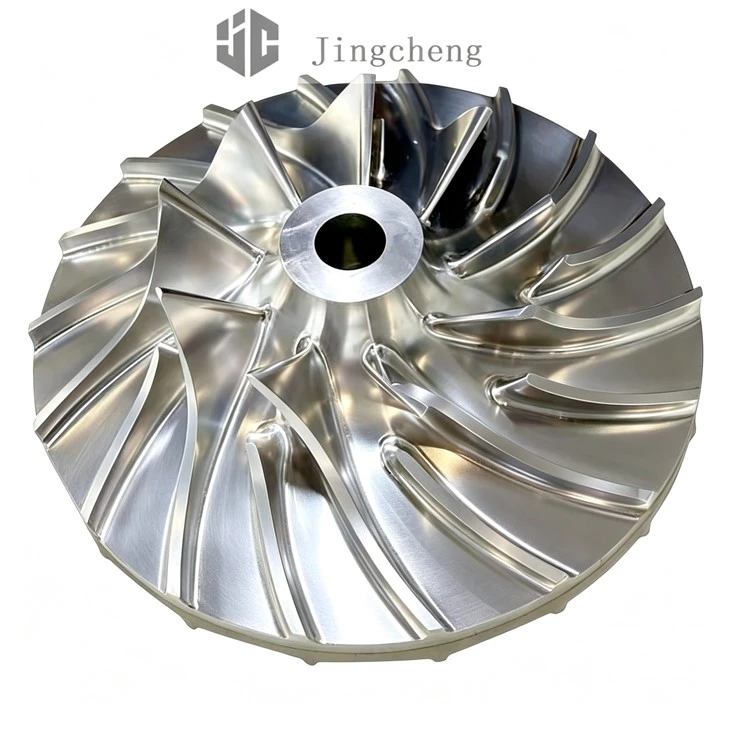

- Impellers
- Turbine-related housings
- Precision shafts
- Mounting components
- Brackets and structural parts
- Prototype propulsion components
This makes the service suitable for engineering teams that need several interconnected machined parts rather than a single standalone component.
A Manufacturing Partner for Development Parts
Many aerospace projects begin with a small number of engineering parts before moving toward repeat production. At this stage, manufacturing flexibility is often more useful than a standardized catalog product.
Jingcheng supports prototype and low-volume CNC machining, allowing customers to submit their own designs instead of selecting from predefined blade specifications.

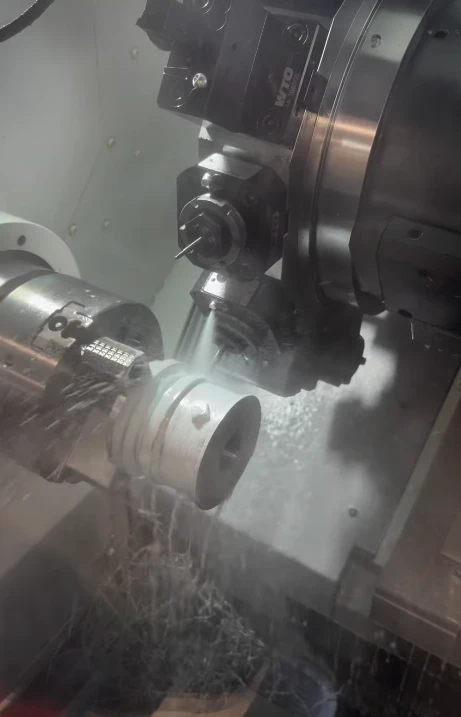

Our production capabilities include 3-axis and 5-axis CNC machining, turning, grinding, drilling, and wire cutting. Quality control and inspection are incorporated into the manufacturing process according to project requirements.
FAQ
Q: Can you machine turbine blades from a 3D CAD model?
A: Yes. Customers can provide a 3D CAD model together with technical drawings, material specifications, tolerances, and other manufacturing requirements. Our team can review the model before quotation.
Q: Do you provide 5-axis CNC machining for turbine blades?
A: Yes. 5-axis CNC machining is available for complex curved surfaces and multi-angle features where the geometry requires controlled tool orientation.
Q: What materials can be used for aerospace turbine components?
A: We can machine materials such as stainless steel, titanium alloys, aluminum alloys, and other engineering metals according to customer specifications.
Q: Can you manufacture turbine blade prototypes?
A: Yes. We support prototype and low-volume CNC machining for engineering development and functional verification.
Q: Can you meet tight aerospace tolerances?
A: Tolerance capability depends on the specific feature, material, component size, and geometry. We evaluate the drawing and model before confirming the achievable tolerance for a particular part.
Q: Do you provide inspection reports?
A: Inspection documentation can be provided according to project requirements. The required inspection items and reporting format can be confirmed before production.
Send Your Turbine Blade CAD File
If you are developing an aerospace turbine blade, impeller, or related precision component, send us the 3D model, drawing, material, quantity, and key tolerances.
We can review the geometry and machining requirements before production and provide a quotation based on the actual part.
