Shenzhen Jingcheng Dingyi Forming Technology Co., Ltd. is one of the leading manufacturers and suppliers of robot joint flange output plate in China, specialized in providing high quality customized products. If you're going to buy bulk cheap robot joint flange output plate, welcome to get quotation from our factory. Quality products and low price are available.

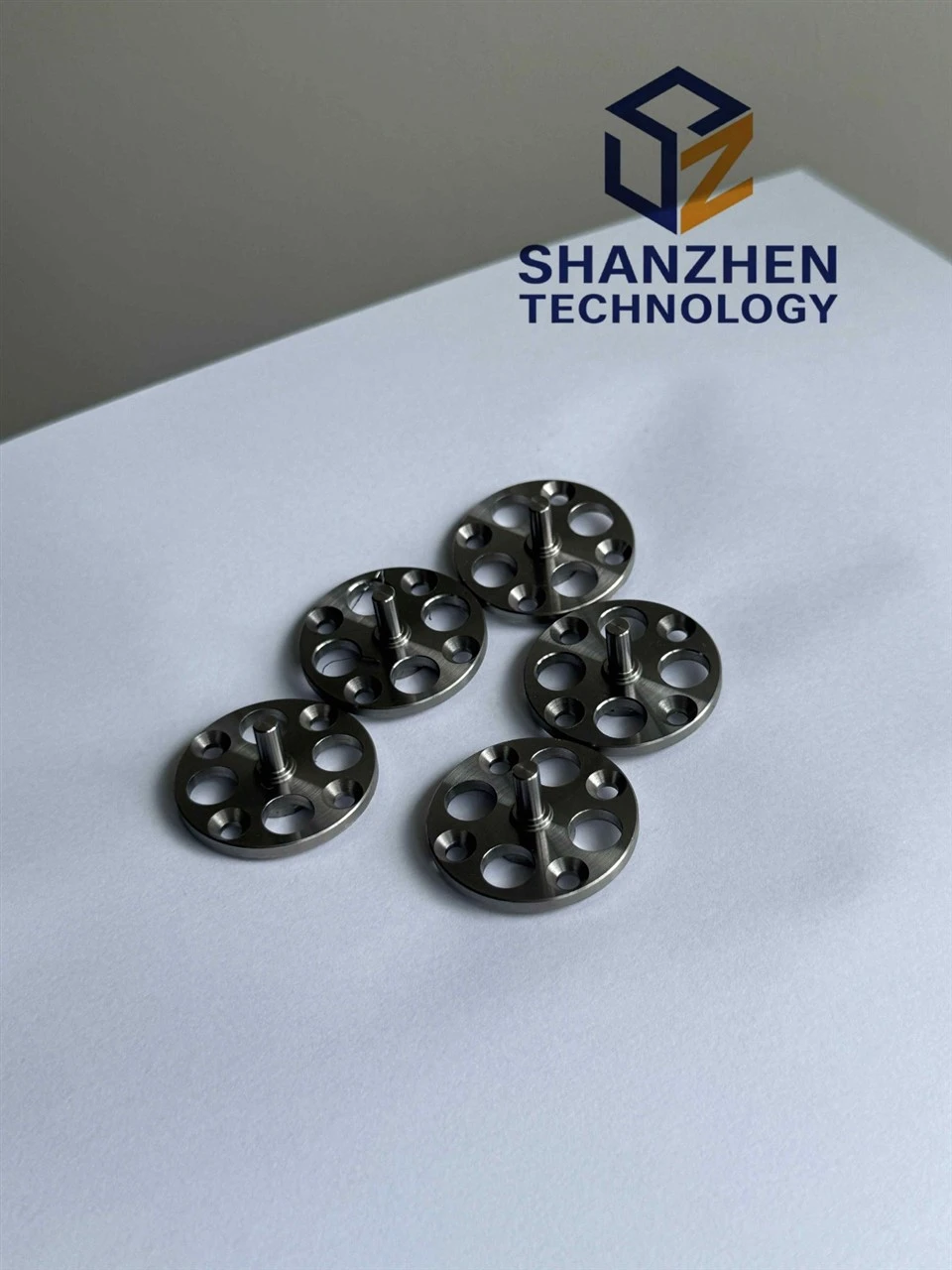

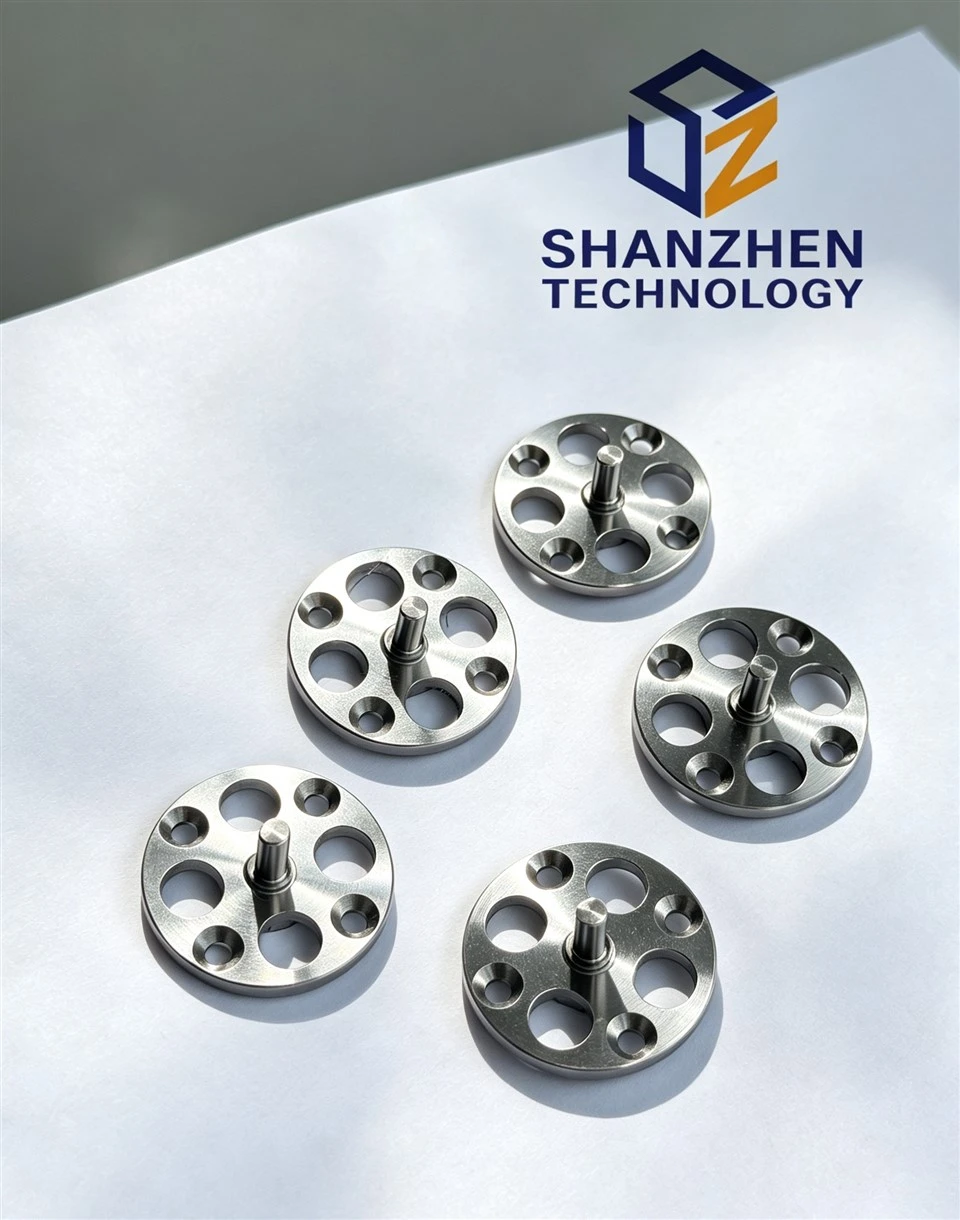

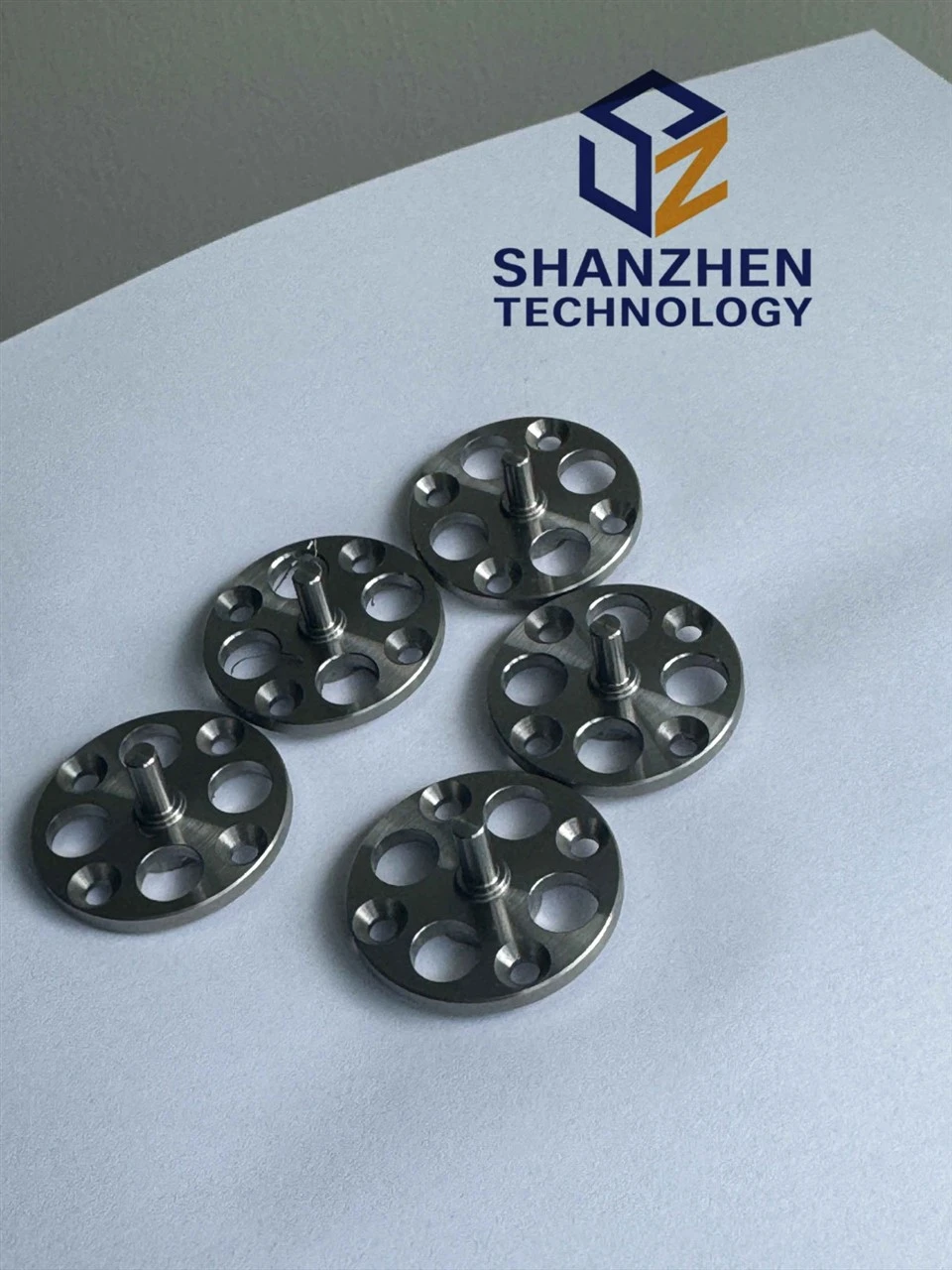

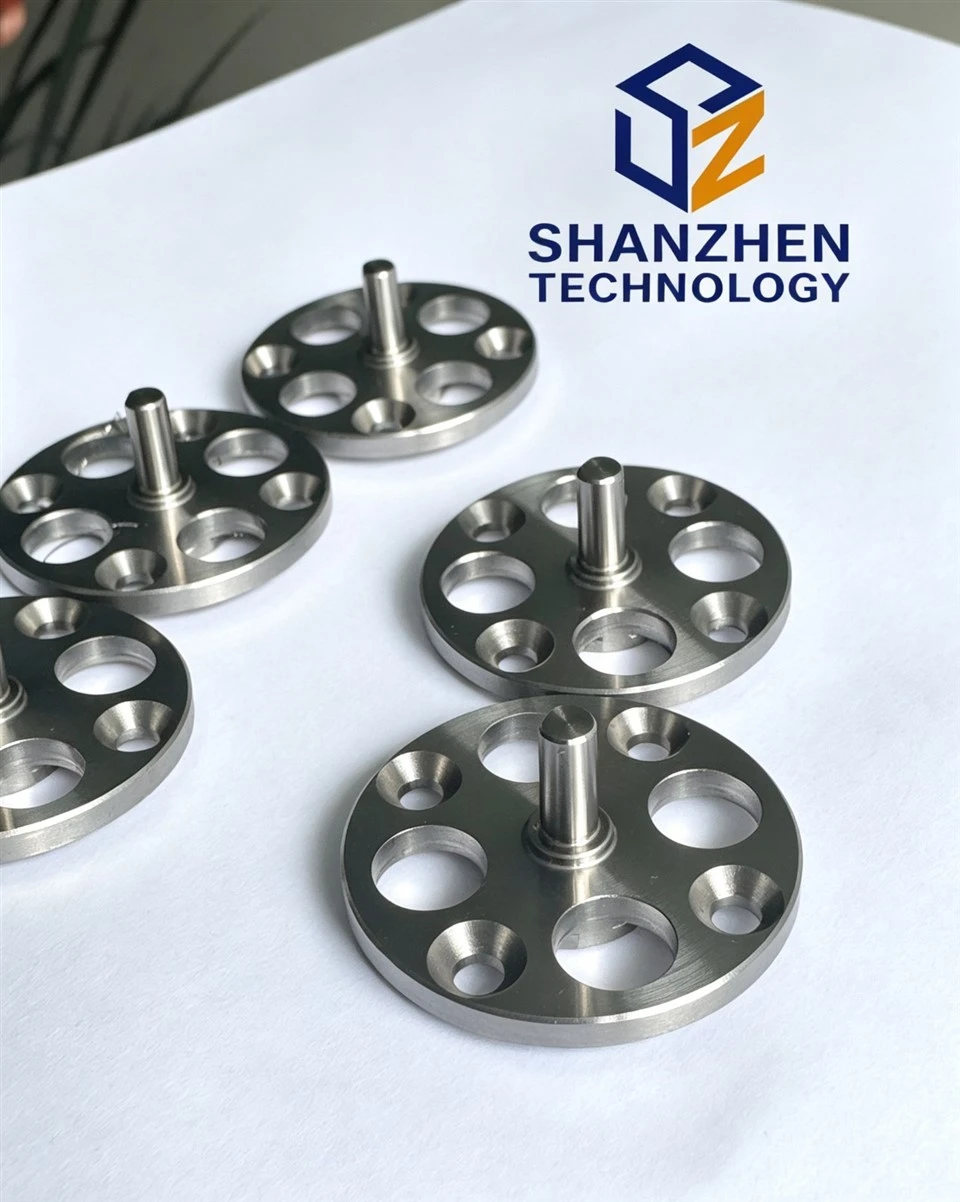

The part features a weight-reduction hole design to reduce overall mass and rotational inertia while maintaining sufficient structural strength. Precision locating diameters and mounting holes ensure accurate assembly with the harmonic reducer and other joint components.
During CNC machining, critical dimensions such as concentricity, flatness, hole position, and locating diameter are carefully controlled to ensure stable assembly and smooth joint operation. The output flange can be manufactured from aluminum alloy or stainless steel, depending on the required strength, weight, corrosion resistance, and application environment.
Key Features
Product: Robot Joint Output Flange
Manufacturing: Precision CNC Machining
Materials: Aluminum Alloy / Stainless Steel
Application: Harmonic Reducer & Robotic Joint Assemblies
Design: Lightweight structure with weight-reduction holes
Critical Features: Precision locating diameter and mounting holes
Quality Control: Concentricity, flatness, dimensional accuracy and hole position
Production: Prototype, low-volume and batch production
Customization: Manufactured according to drawings or 3D CAD files
Applications
Our robot joint output flanges can be used in:
Humanoid robot shoulder joints
Robot elbow joints
Robot hip joints
Robot wrist joints
Robotic finger joints
Harmonic reducer assemblies
Robotic actuator modules
Industrial and collaborative robot joints
Why Use CNC Machining for Robot Output Flanges?
Robot joints require accurate interfaces between the reducer, motor, bearings, and structural components. CNC machining allows us to precisely manufacture the locating surfaces, mounting holes, and complex weight-reduction features required for these assemblies.
For aluminum robot joint components, CNC machining also provides an effective way to achieve a lightweight structure while maintaining the dimensional accuracy required for robotic motion systems.
One-stop Cosmetic Tube Factory in China
Custom Robot Joint Flange Manufacturing
Every robotic joint can have different dimensions, hole patterns, locating features, and weight requirements. We manufacture custom CNC robot flanges according to your engineering drawings or 3D models.
You can send us your 2D drawing, STEP file, or 3D CAD model for a manufacturing review and quotation.
Looking for a CNC machining supplier for robotic joint components? Send us your drawing today and let our engineering team review your part.
FAQ
Q: 1. What is a robot joint output flange?
A: A robot joint output flange is a mechanical interface component installed at the output side of a robotic actuator or harmonic reducer. It transfers torque from the reducer to the robot's structural components while providing accurate positioning and secure mounting.
Q: 2. What materials can be used for robot joint output flanges?
A: Common materials include 6061 and 7075 aluminum alloys for lightweight robotic applications, as well as stainless steel when higher strength, wear resistance, or corrosion resistance is required.
Q: 3. Why are weight-reduction holes used in robot flanges?
A: Weight-reduction holes decrease the mass of the flange and help reduce rotational inertia. This can be particularly important for humanoid robot joints, where lower moving mass can contribute to more efficient and responsive movement.
Q: 4. Can you manufacture the flange according to our drawing?
A: Yes. We support custom CNC machining based on 2D drawings, 3D CAD models, material specifications, tolerances, and surface finish requirements.
Q: 5. Which robot joints use output flanges?
A: Robot output flanges can be used in shoulder, elbow, hip, wrist, and finger joints, depending on the actuator and mechanical architecture of the robot.
Q: 6. Can you provide prototypes before mass production?
A: Yes. We can manufacture prototypes for design verification and functional testing before moving to larger-volume production.
Q: 7. What surface finishes are available?
A: Depending on the material and application, available finishes can include anodizing, electropolishing, passivation, polishing, and other customized surface treatments.
Q: 8. How can I get a quotation?
A: Simply send us your 2D drawing or 3D CAD file, together with the required material, quantity, tolerance, and surface finish. Our team can review the design and provide a quotation based on your requirements.
